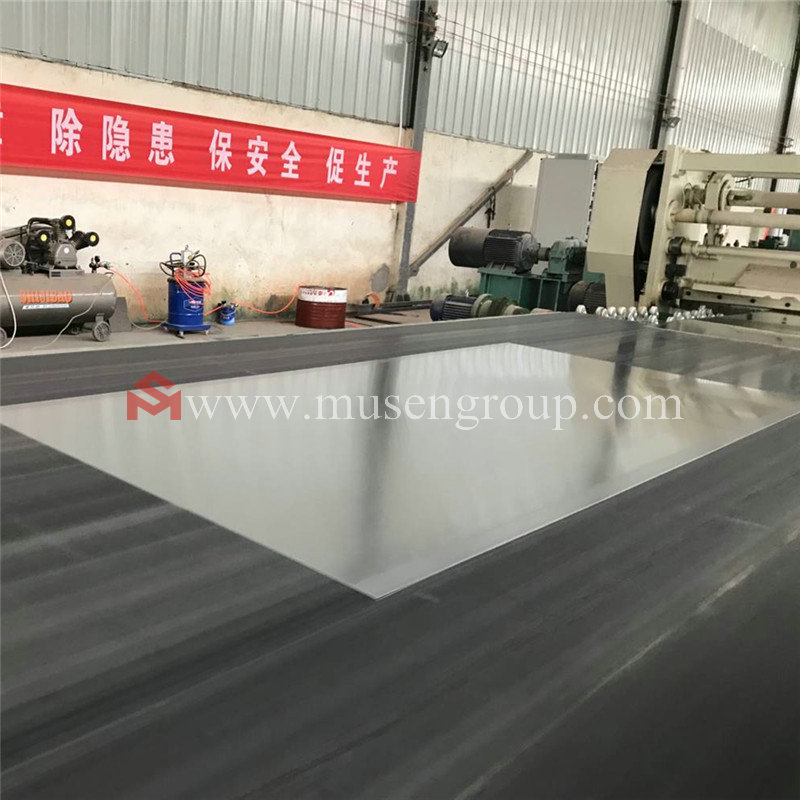

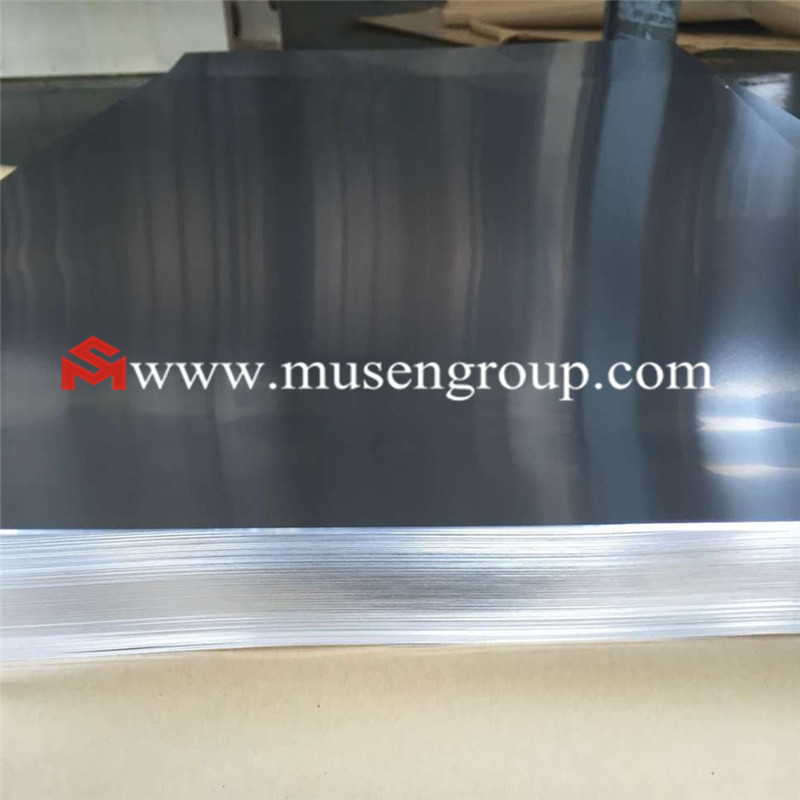

| Aluminum Sheet for Bottle Caps,Aluminium PP Caps Sheet | ||||
| Grade | 1060, 3003, 3105, 5052, 8011 | |||
| Temper | H18, H19, H22, H24, H26,H14,H16 | |||
| Thickness Range (mm) | 0.15-0.5mm | |||
| Width (mm) | 500~2500mm | |||
| Processing technique | CC/DC | |||
| Surface Treatment | Mill finished | |||

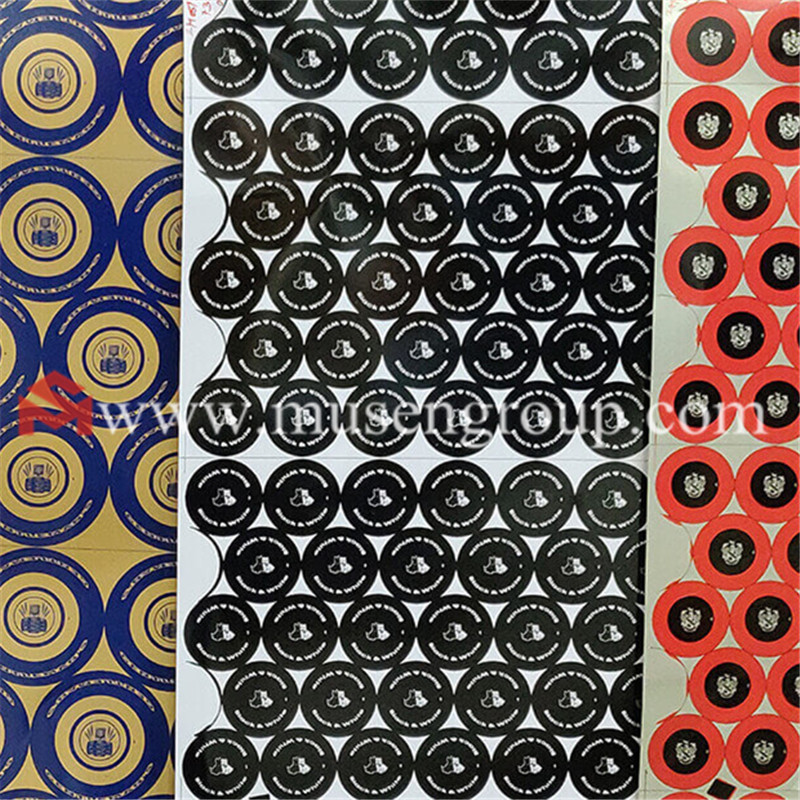

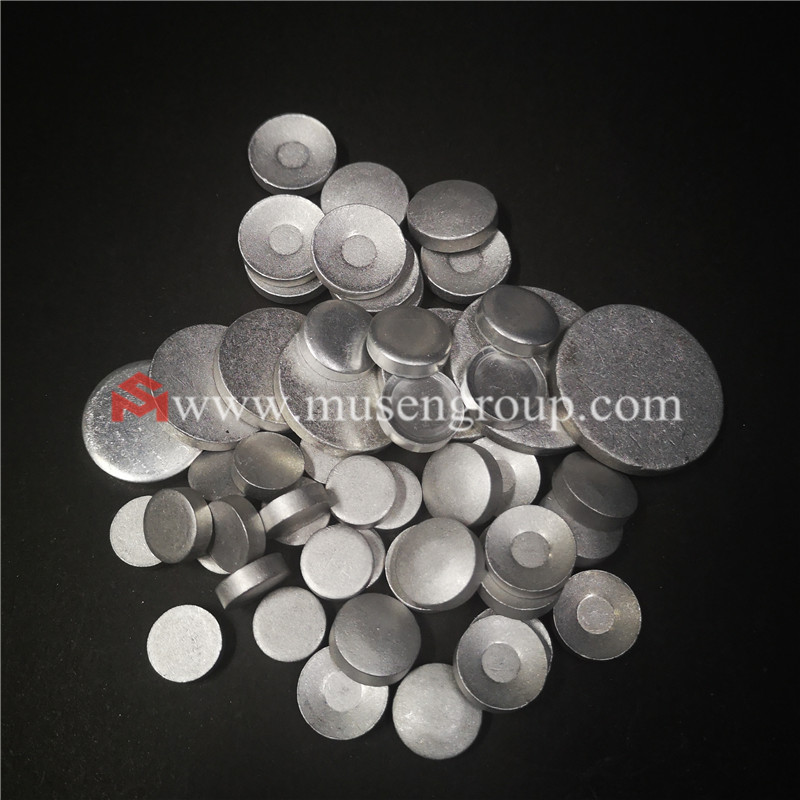

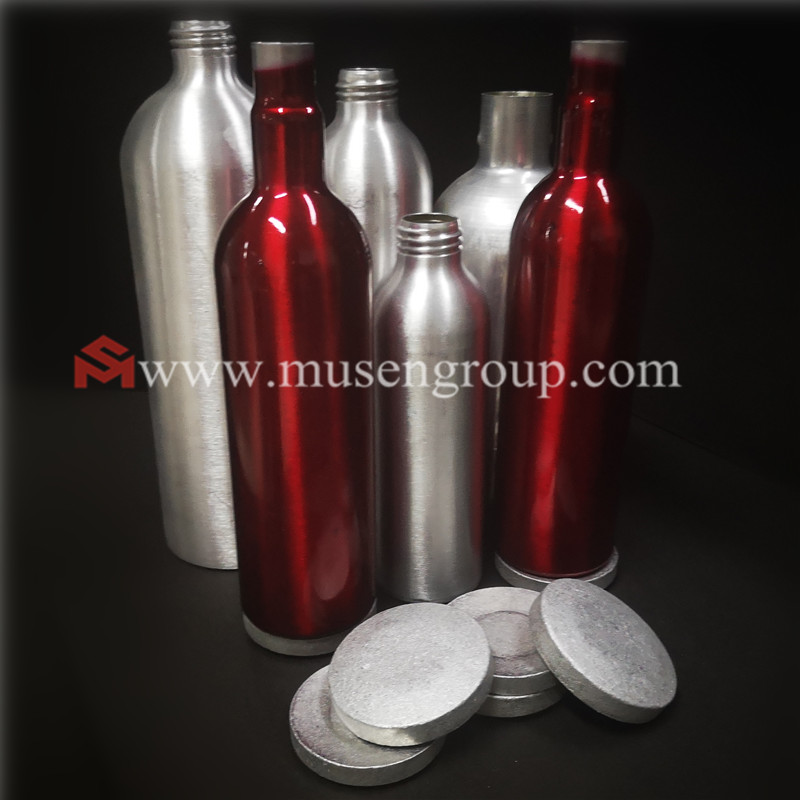

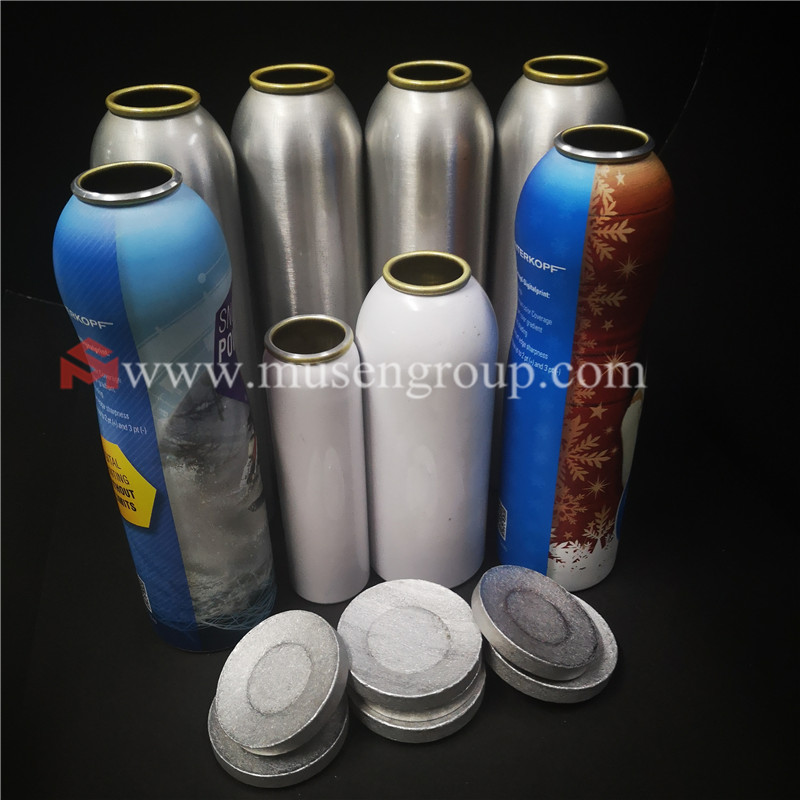

| Application | bottle cap, aluminum liquor cap, red wine cap, anti-theft wine cap, broken bottle cap, Perfume cap, skin care bottle cap, cosmetic product bottle cap, oil cover, Oral liquid aluminum plastic composite cover, infusion bottle aluminum plastic cover, etc | |||
| Payment terms: | 30% deposit+T/T or L/C | |||
| Delevery time: | 20~25 days after deposit received | |||

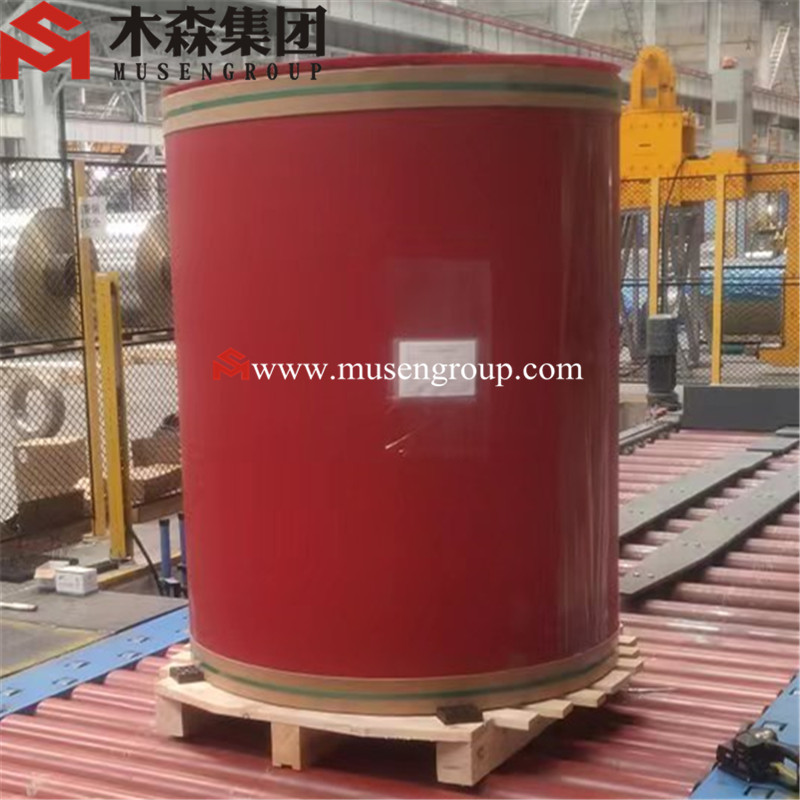

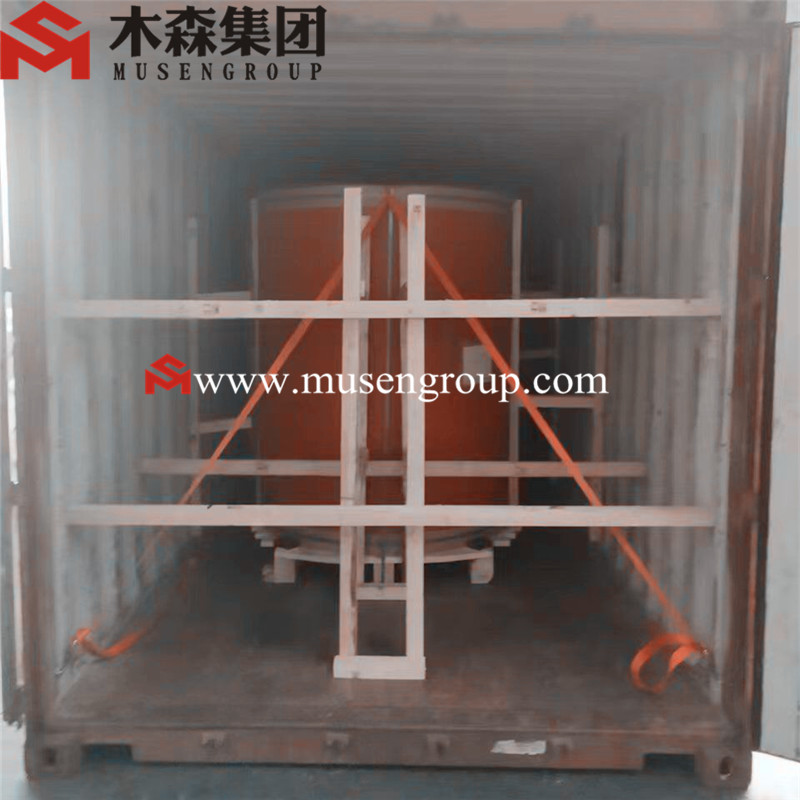

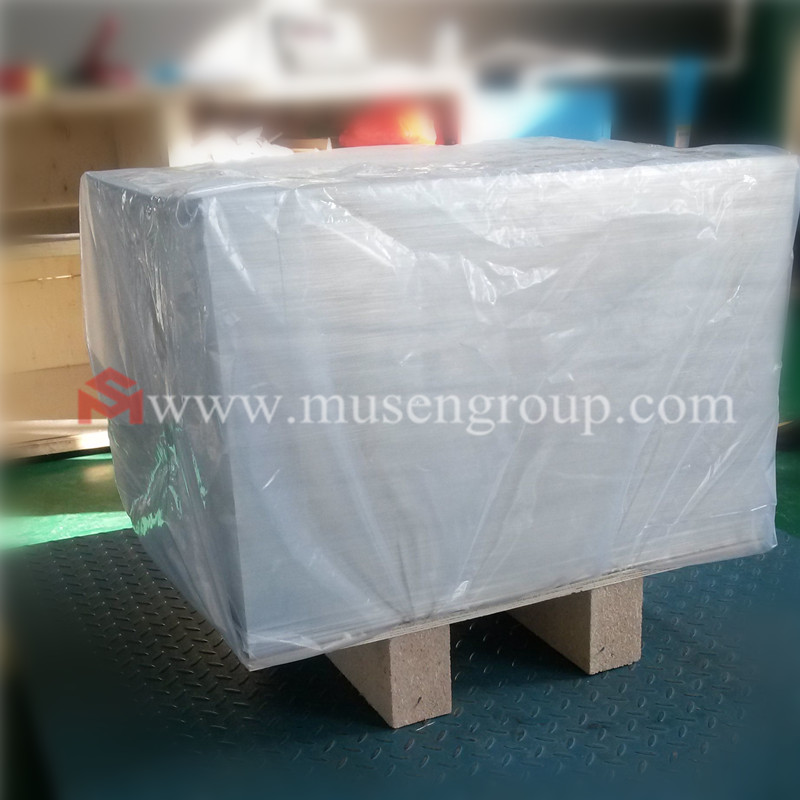

| Packaging details: | Wooden pallet,stand sea-worthy | |||
| Sample: | 1~3 pcs Available | |||
| Port of loading: | Any port in China | |||

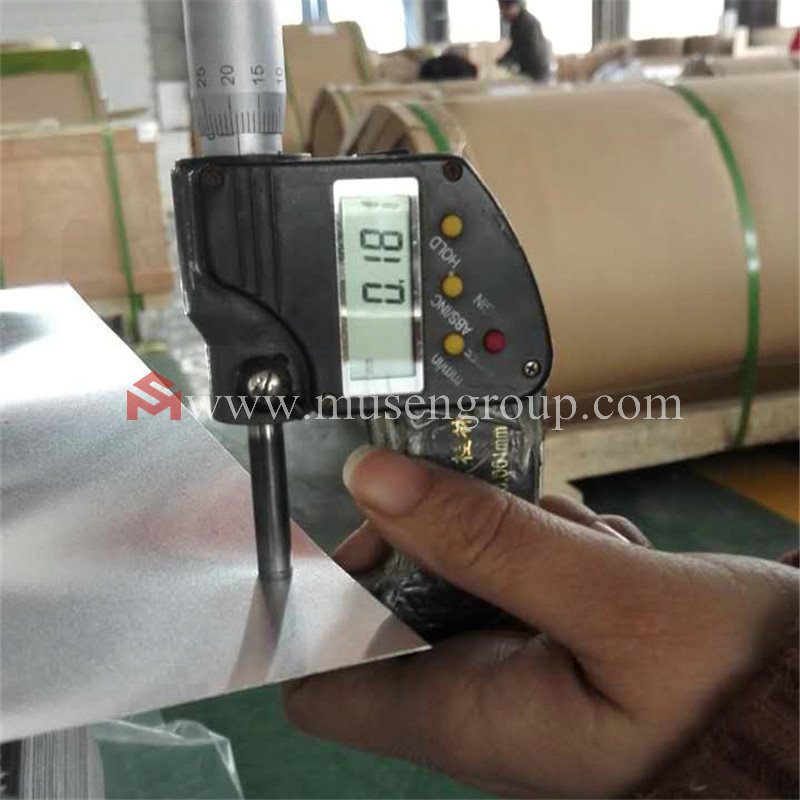

| Size Tolerance(mm) | ||||||
| Sizes | Thickness Tolr. | Width tolr. | Length tolr. | Diagonal tolr. | Flatness | |
| ≤500 mm | ＞500 mm | |||||
| 0.15~0.48mm | -/+0.01mm | -/+1mm | -0/+2mm | -0/+1mm | ≤1mm | ≤5mm/2m, |
| ＜3 waves/m | ||||||
| Alloy | 1060 | 8011 | 3003 | 3105 | 5052 |
| Temper | O,H22 | H14,H24,H16 | H14,H24, | H14,H24,H16, | H18,H19 |
| H26H18 | H16,H26,H18 | H26,H18 |
| Chemical composition Wt（%） | |||||||||
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Ti | others | Al |
| A1060 | ≤0.25 | ≤0.35 | ≤0.05 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.03 | 0.03 | Remainer |
| A8011 | 0.5-0.9 | 0.6-1.0 | ≤0.10 | ≤0.20 | ≤0.05 | ≤0.10 | ≤0.08 | ≤0.15 | Remainer |
| A3003 | ≤0.6 | ≤0.4 | 0.05~0.2 | 1.0~1.5 | - | ≤0.10 | ≤0.10 | ≤0.15 | Remainer |
| A3105 | ≤0.6 | ≤0.7 | ≤0.3 | 0.3~0.8 | 0.2~0.8 | ≤0.40 | ≤0.10 | ≤0.15 | Remainer |
| A5052 | ≤0.25 | ≤0.4 | ≤0.1 | ≤0.1 | 2.2~2.8 | 0.1 | - | ≤0.15 | Remainer |
| Mechanical Properties | |||||
| Alloy | Temper | Thickness | Tensile Strength (Rm/Mpa) | Elongation (%) | Earing(%) |
| (mm) | |||||
| 1060 | O | 0.15~0.5 | 55~95 | 15 | 6 |
| 1060 | H22 | 0.4~0.5 | 75~110 | 6 | 5 |
| 8011 | H14 | 0.15~0.5 | 125~165 | 2 | 3 |
| 8011 | H16 | 0.15~0.5 | 130~165 | 1 | 3 |
| 8011 | H18 | 0.2~0.5 | ≥165 | 1 | 3 |
| 3003 | H14,H24 | 0.2~0.5 | 145~185 | 2 | 4 |
| 3003 | H16,H26 | 0.2~0.5 | 170~210 | 1 | 4 |
| 3003 | H18 | 0.15~0.5 | ≥185 | 1 | 4 |
| 3105 | H14,H24 | 0.2~0.5 | 150~200 | 2 | 4 |
| 3105 | H16,H26 | 0.2~0.5 | 175~225 | 1 | 4 |
| 3105 | H18 | 0.2~0.5 | ≥195 | 1 | 4 |
| 5052 | H18 | 0.2~0.5 | 280~320 | 3 | 4 |
| 5052 | H19 | 0.2~0.5 | ≥285 | 2 | 4 |
