MIC-6Aluminum Cast Plate

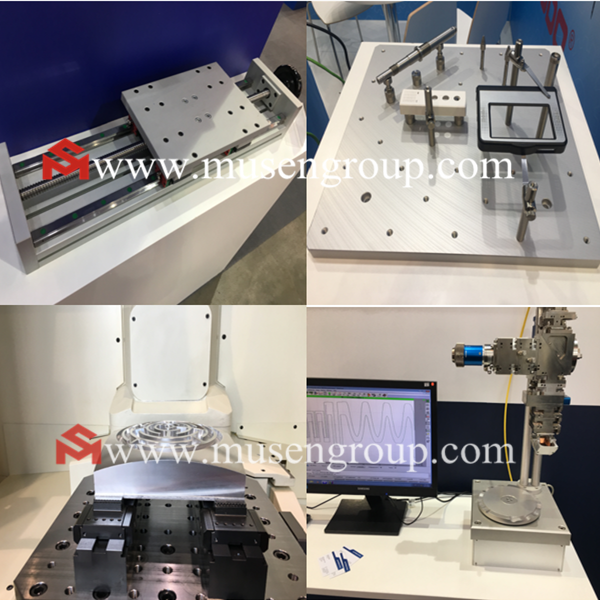

 MIC-6 Aluminum Cast Plate,the high precision aluminum cast plate,is produced by our factory named HCP7000, with chemical compossion similar to 7000 series alloy. This tooling plate material is the most advanced in the cast plate industry.  It promotes consistency between plates and reduces the risk of disrupting  material stability by entrapping stress. MIC-6 aluminum cast plate commonly applies in Machine Components,Aerospace and Automotive Components,Electronics,Laser Technology and Optical Industry.
       MIC-6Aluminum Cast Plate, the Ultra-Flatness Precision Aluminum Plate in china,and our factory named it HCP7000, is a 7xxx series precision aluminum cast plate with precise adaptable additions of some chemical compositions.
  • Details of MIC-6 aluminum cast plates
Products MIC-6,HCP7000
Alloy 7000
Process Homogenized and stress relieved
Minimum Order Quantity 5000 Kilograms
Surface Finish High Speed Milling
Thickness 5.0~100mm
Size/Dimension 1650x3660,or CNC Cutting as per the orders
Usage/Application Moulding,fixtures,high precision machinery
  •   Specifications of MIC-6 aluminum cast plates
Thickness of casting plate  5.0~100mm
Thickness   Width Range Length Range
5mm~10mm  30~1520mm 30~3020mm
10mm~15mm 30~1570mm 30~3670mm
15mm~100mm 30~1860mm 30~4000mm
Size Tolerance

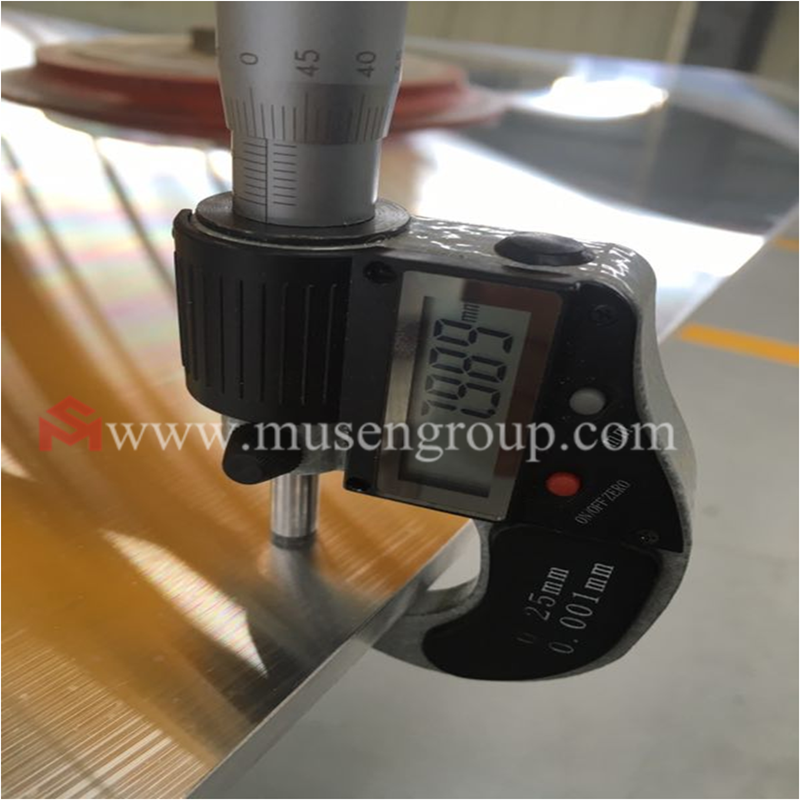

Thickness tolerance -0/+0.05mm
Width tolerance ±0.07mm
Length tolerance -0/+15mm
Width/Length for small
Flatness ≤0.30mm/(6.0~12mm)
 surface roughness(Ra) ≤0.4um
  • Properties MIC-6 aluminum cast plates
Grade Units MIC-6 HCP7000
UltimateTensile Strength  UTS 165Mpa min. 170Mpa min.
Yield Strength  YS 105Mpa min. 110Mpa min.
Hardness HBW 65 60
Elongation at break % 3% min 10% min
Density g/cm³ 2.73g/cc 2.73g/cc
Thermal Conductivity
Electrical Conductivity
 Modulus of Elasticity
